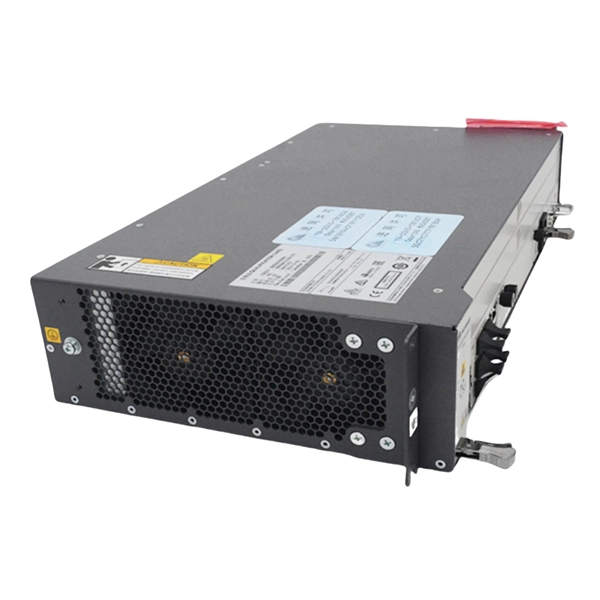

Configuration of Dual-Machine Mode for Aggregation Switch

Dual-Machine Mode, or MLAG, allows two aggregation switches to operate as a single logical unit, providing redundancy, load balancing, and full utilization of all links.Overview of Dual-Machine Mode (MLAG)

Dual-Machine Mode, commonly referred to as Multi-Chassis Link Aggregation (MLAG), enables two switches to appear as a single logical switch to connected devices. This setup allows multiple physical links to be aggregated across both switches, providing:

  • Redundancy: If one switch fails, traffic continues through the other switch without downtime .
  • Load Balancing: Traffic is distributed across all active links, maximizing bandwidth utilization .
  • Full Link Utilization: Unlike traditional Spanning Tree Protocol (STP) setups, MLAG allows all links to carry traffic simultaneously, avoiding 50% bandwidth loss due to blocked ports .
Key Components
  1. Peer Switches: Two switches configured as MLAG peers.
  2. Peer Link: A dedicated link between the two switches for exchanging MLAG control information and, optionally, data traffic from devices connected to only one peer .
  3. MLAG Domain ID: A unique identifier configured on both switches to recognize each other as part of the same MLAG domain .
  4. MLAG System ID (MSI): A MAC address automatically derived for the MLAG domain, used in STP and LACP PDUs .
Configuration Steps
  1. Prepare Switches:
    • Ensure both switches support MLAG and have compatible firmware.
    • Configure consistent VLANs, STP settings, port speed, duplex, and link types on all ports intended for aggregation .
  2. Configure the Peer Link:
    • Connect a dedicated interface between the two switches.
    • Assign the peer link IP addresses and enable MLAG control traffic.
  3. Define MLAG Domain:
    • Set the MLAG domain ID on both switches.
    • Verify that the peer link is operational and the switches recognize each other.
  4. Configure Aggregated Ports:
    • Create a port channel on each switch including the physical interfaces that will connect to downstream devices.
    • Enable LACP (active or passive) for dynamic negotiation, or use static aggregation if preferred .
    • Ensure the same ports are aggregated on both switches to maintain symmetry.
  5. Connect Downstream Devices:
    • Connect servers, other switches, or network devices to the MLAG port channels.
    • Devices see the MLAG as a single logical link, allowing traffic to flow across both switches.
  6. Verify Configuration:
    • Check MLAG status, peer link health, and aggregated port status.
    • Confirm that all links are forwarding traffic and that failover works as expected.
Best Practices
  • Sequential Port Assignment: Use sequential ports for aggregation to avoid misconfiguration, especially on UniFi switches .
  • Consistent Configuration: All aggregated ports must have identical VLAN, STP, and speed settings .
  • Redundancy Testing: Simulate a switch or link failure to ensure traffic continues without interruption.
  • Monitoring: Regularly monitor MLAG health and peer link status to detect issues early. By following these steps, you can configure Dual-Machine Mode on aggregation switches to achieve high availability, load balancing, and efficient bandwidth utilization across your network .
