What is the appropriate size for a fiber optic patch panel

Fiber optic patch panels are typically sized in rack units (1U, 2U, or 4U) depending on fiber density and installation requirements.Rack Unit Sizing

Patch panels are measured in Rack Units (U or RU), where 1U equals 1.75 inches (44.5 mm) of vertical space in a standard 19-inch or 23-inch equipment rack . Common configurations include:

• 1U: Suitable for small-scale or edge applications, typically supporting 12 to 48 fiber ports .
• 2U: Medium-density panels, often accommodating 96 ports using LC duplex or MTP/MPO connectors .
• 4U: High-density panels for large-scale deployments, supporting 144+ ports . Choosing the correct U size depends on the number of fibers, expected future expansion, and ease of maintenance. A slightly larger panel may reduce future reinstallation costs and improve cable management .

Mounting Options

Patch panels can be installed in different ways depending on the environment:

• Rack Mount: Standard 19-inch or 23-inch racks, common in data centers and telecom rooms .
• Wall Mount: Ideal for small offices or building entry points where floor space is limited .
• DIN-Rail Mount: Used in industrial environments for compact, lightweight installations .
• Outdoor Enclosures: Designed for weather protection with NEMA ratings, suitable for pole or wall installations .

Fiber Density and Connector Types

The fiber strand count and connector type influence panel size:

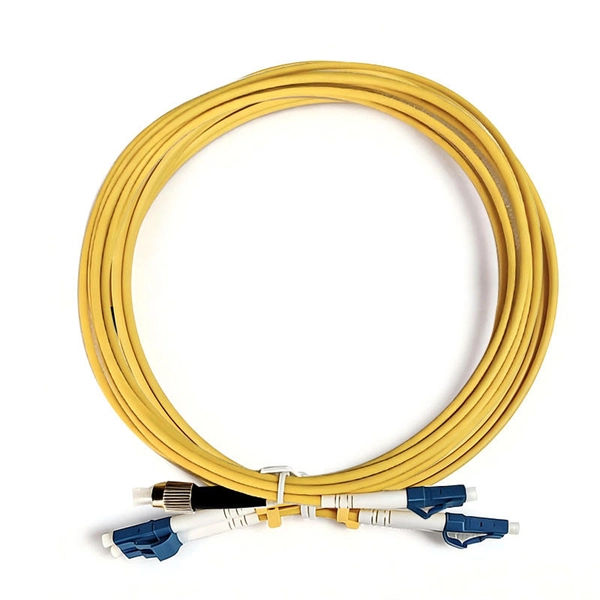

• Panels can support 12, 24, 48, 96, or 144+ ports depending on density and connector type (LC, SC, MPO/MTP) .
• High-density panels often use modular or slide-out designs to facilitate maintenance and future upgrades .
• Single-mode and multi-mode fibers can be housed in the same panel if routed and labeled separately to prevent cross-connection errors .

Key Considerations

• Future-proofing: Select a panel that accommodates anticipated network growth.
• Cable management: Ensure proper bend radius protection to prevent signal loss or fiber damage .
• Accessibility: Modular or slide-out panels improve technician access and reduce downtime . In summary, the appropriate size for a fiber optic patch panel depends on your rack space, fiber count, connector type, and installation environment. For most standard data center applications, 1U to 4U rack-mounted panels are common, with higher U sizes used for high-density deployments or future scalability.
