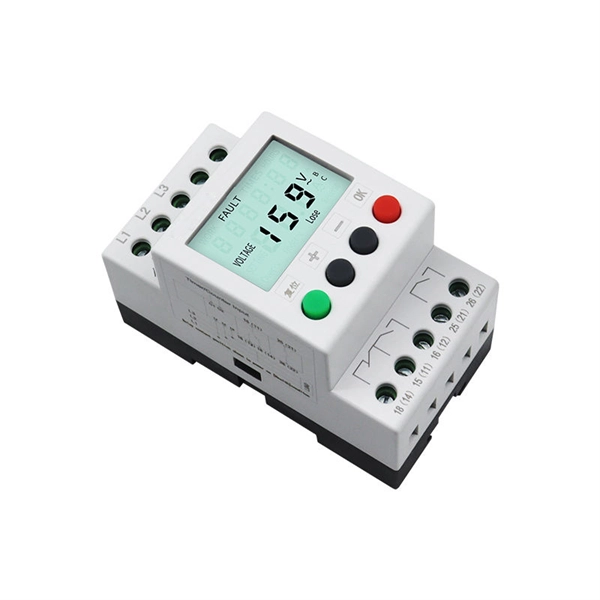

Placement and Accessibility: Indoor distribution boxes should be installed in dry, well-ventilated areas that are easily accessible for operation, maintenance, and inspection. Recommended mounting heights for residential units are typically between 1 meter and 1.8 meters from the floor, with 1.3 meters suggested for elderly or handicapped users. Industrial installations may require a maximum width of 1.5 meters, height of 1.2 meters, and depth of 0.5 meters for IP54-rated enclosures . Clearances and Working Space: NEC standards specify a minimum clearance of 30 inches (762 mm) wide, 36 inches (914 mm) deep, and approximately 2 meters high in front of the panel. The panel door must open fully to 90°, and no equipment should extend more than 6 inches beyond the panel front . Protection and Safety Devices: Each circuit within the distribution box should have its own protective device, such as a breaker or fuse, to prevent overloads, short circuits, and ground faults. Residual current devices (RCDs) or surge protectors may also be included for enhanced safety .
Design and Construction StandardsEnclosure Ratings: Indoor boxes should have appropriate IP or NEMA ratings to protect against dust, moisture, and mechanical damage. Steel or corrosion-resistant plastic enclosures are commonly used, with higher ratings required for challenging indoor environments like bathrooms, kitchens, or industrial zones . Internal Layout: Proper cable management, secure grounding, and correct wire gauge selection are essential. DIN rail-mounted terminal blocks, bus bars, and labeled circuits improve organization and facilitate maintenance or future upgrades . Compliance with Codes: Distribution boxes must adhere to international and local standards. IEC 60364 and BS 7671 provide guidance on low-voltage installations, accessibility, and protection. NEC Article 408 outlines requirements for panelboards, including working space, mounting height, and dedicated electrical space .
Operational ConsiderationsLoad Management: Indoor distribution boxes divide incoming power into branch circuits for lighting, outlets, HVAC, or machinery, ensuring balanced load distribution and preventing overloads . Maintenance: Regular inspections, visual checks, and multimeter testing are recommended to ensure long-term reliability. Labeling circuits and using modular designs can simplify troubleshooting and future expansion . Advanced Features: Modern indoor distribution boxes may include digital monitoring, IoT connectivity, and real-time analytics for intelligent energy management, particularly in commercial or industrial settings . By following these standards and best practices, indoor distribution boxes can provide safe, efficient, and reliable power distribution while complying with regulatory requirements.
The volume of electrical boxes shall be sufficient for the number of conductors, devices, and cable clamps contained within the box.
