Fiber Optic ODF Frame Wiring

ODF wiring involves structured fiber termination, splicing, patching, and cable management to ensure organized, scalable, and low-loss optical networks.Overview of an ODF

An Optical Distribution Frame (ODF) is a centralized platform for terminating, cross-connecting, and managing optical fibers in telecom rooms, data centers, or central offices . It provides a structured environment for fiber splicing, termination, patching, and protection, ensuring network reliability and scalability . ODFs can be wall-mounted, rack-mounted, modular, or outdoor enclosures, depending on deployment requirements .

Key Components

• Patch Panels: Modular units for organizing fiber connectors and cross-connections, supporting LC, SC, or MPO/MTP adapters .
• Splice Trays: Protect fiber splices and maintain proper bend radius, preventing signal loss .
• Cable Management Accessories: Rings, guides, holders, and strain relief devices to route fibers neatly and avoid mechanical stress .
• Adapters and Connectors: Facilitate easy termination and replacement of fibers .
• Cable Entry Ports: Allow secure entry of standard or micro cables, often with breakout plates to fix sheaths, strength members, and tubes .

Wiring and Installation Best Practices

1. Cable Routing: Plan entry and exit paths to minimize fiber stress and maintain bend radius. Use horizontal and vertical guides to organize fibers .
2. Termination and Splicing: Feed cables into splice trays, perform fusion splicing to pigtails, and connect to patch panels. Ensure splices are protected and accessible for maintenance .
3. Labeling: Clearly label all fibers, ports, and patch panels for quick identification and troubleshooting .
4. Slack Management: Store excess fiber in loops or trays to prevent tension and maintain bend radius compliance .
5. Cleaning and Inspection: Regularly inspect connectors and clean as needed to prevent signal degradation .
6. Scalability: Use modular patch panels and ODF designs to accommodate future fiber expansion .

Types of ODF Configurations

• Wall-Mount ODF: Compact, suitable for small setups or limited space .
• Rack-Mount ODF: Standard 19-inch or 23-inch frames for high-density deployments .
• Modular ODF: Scalable systems for growing fiber counts .

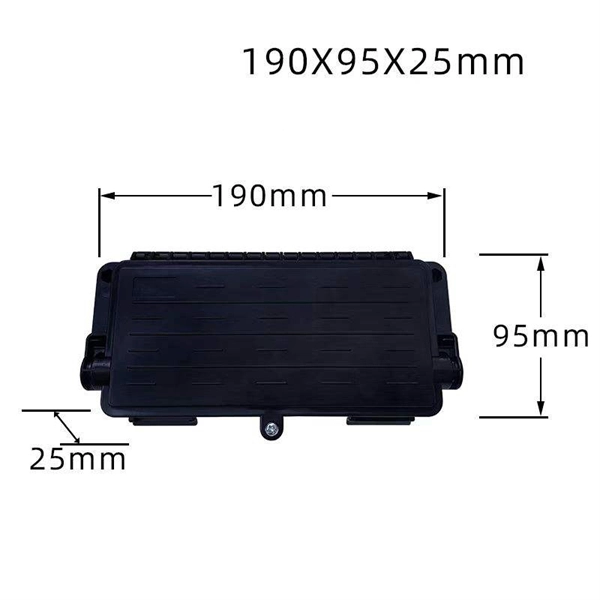

• Outdoor ODF: Weatherproof enclosures for external deployments .

Summary

Proper ODF wiring ensures organized fiber management, reduces signal loss, and simplifies maintenance. By combining structured cable routing, secure splicing, modular patch panels, and clear labeling, technicians can maintain a reliable and scalable optical network infrastructure .
