Fiber optic cable pigtail bend

Maintaining the correct bend radius for fiber optic pigtails is critical to prevent signal loss, permanent damage, and long-term reliability issues.Understanding Fiber Optic Pigtails

A fiber optic pigtail is a short length of optical fiber with a factory-terminated connector on one end and bare fiber on the other, designed for fusion or mechanical splicing to a main cable in the field . Pigtails are commonly used in ODFs, terminal boxes, and patch panels, providing a reliable bridge between permanent fiber infrastructure and active equipment . Unlike patch cords, which have connectors on both ends, the bare fiber end of a pigtail is intended for permanent splicing, making careful handling essential to maintain performance .

Bend Radius and Its Importance

The bend radius is the minimum radius a fiber can be bent without causing excessive signal loss or physical damage . Exceeding this radius can result in:

• Signal loss (bend loss): Light escapes the core, reducing signal strength.
• Permanent damage: Micro-cracks or fiber breakage can occur.
• Increased attenuation: Tighter bends accelerate signal weakening over distance .

Recommended Bend Radius

• During installation (under tension): Minimum bend radius is typically 20 times the cable diameter.
• After installation (no tension): Minimum long-term bend radius is usually 10 times the cable diameter .
• Some cables, especially bend-insensitive fibers (BIF), allow tighter bends without significant signal loss due to a trench in the cladding that redirects light back into the core .

Practical Tips for Pigtail Handling

1. Avoid sharp bends: Always route pigtails in smooth curves, respecting the minimum bend radius.
2. Use bend-insensitive pigtails for tight spaces: OS2 G.657.A2 pigtails are designed for compact routing and FTTR applications .

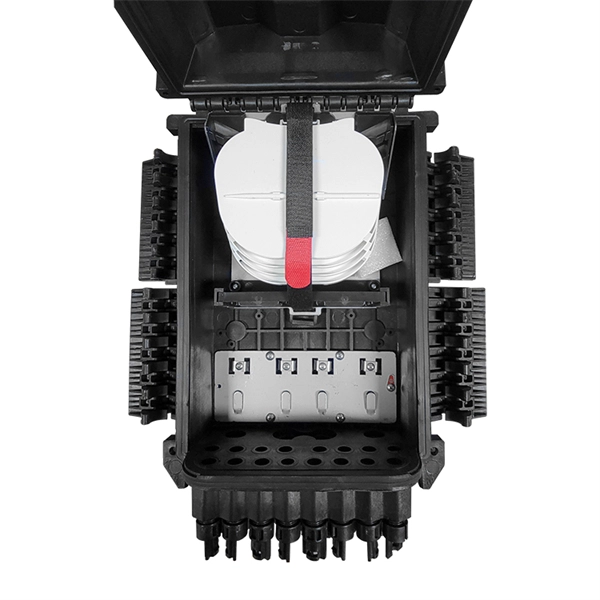

3. Secure pigtails properly: Use splice trays or cable management systems to prevent accidental kinks.
4. Do not repeatedly flex: Pigtails are intended for permanent splicing; frequent bending can degrade performance.
5. Check manufacturer specifications: Different pigtails may have slightly different bend radius requirements, so always follow the datasheet .

Summary

Properly managing the bend radius of fiber optic pigtails ensures low insertion loss, high return loss, and long-term network reliability. Using bend-insensitive fibers and adhering to installation guidelines minimizes the risk of damage, making pigtails a reliable solution for connecting bulk fiber cables to equipment in high-density or constrained environments .
