How to connect the optical distribution box and the optical fiber

Connecting an optical distribution box to optical fiber involves careful cable introduction, routing, splicing, and securing fibers to ensure protection and signal integrity.Step 1: Install the Optical Distribution Box

First, mount the optical distribution box in the desired location. For rack-mounted boxes, attach brackets to the sides and secure them to the rack with screws. For wall-mounted boxes, ensure the surface is stable and use appropriate anchors or screws. Determine the installation orientation based on cable entry points and accessibility for future maintenance .

Step 2: Introduce the Optical Fiber Cable

Feed the optical fiber cable into the distribution box through the designated cable inlet hole. Use a grommet or cable gland to protect the cable and secure it in place. Ensure the cable is not bent sharply or pulled tightly, as optical fibers are fragile and can break or suffer signal loss .

Step 3: Prepare and Protect the Fiber

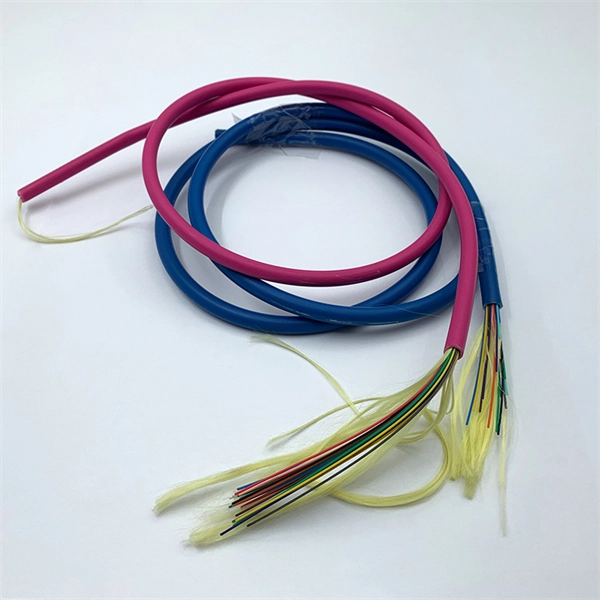

Strip the outer jacket of the fiber cable carefully, exposing the bare fibers. Use protection connectors or bare fiber protection tubes to shield the fibers from mechanical stress. This step prevents damage during routing and splicing .

Step 4: Route the Fiber Inside the Box

Plan the fiber path within the distribution box to avoid sharp bends and excessive tension. Many boxes have a drawer or modular structure with separate splicing and distribution panels. Route the fibers along the designated channels, securing them with cable ties or movable clips to maintain organization and prevent movement .

Step 5: Splice or Connect the Fibers

Perform fusion splicing or use pre-terminated pigtails to connect the incoming fiber to the distribution panel. Ensure splices are clean and properly protected in splice trays. This step ensures low signal loss and reliable connectivity .

Step 6: Finalize and Test

After all fibers are connected and secured, close the distribution box and label each fiber for easy identification. Test the connections using an optical power meter or OTDR to verify signal integrity and ensure there is no excessive loss .

Best Practices

• Maintain a minimum bend radius for all fibers to prevent breakage.
• Leave extra fiber length to allow for drawer movement or future maintenance.
• Use weatherproof boxes for outdoor installations to protect against environmental factors.
• Regularly inspect and clean connectors to maintain optimal performance . By following these steps, you can safely and efficiently connect optical fibers to a distribution box, ensuring organized, protected, and high-quality fiber optic connections.
