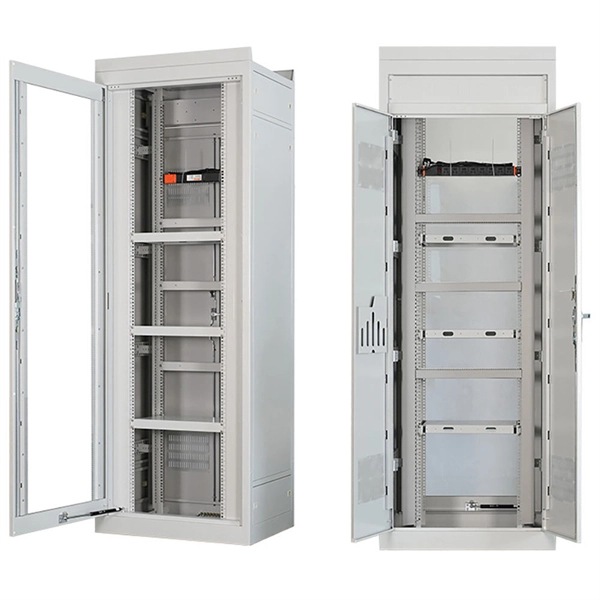

Install the steel plate by positioning it inside the enclosure, securing it with screws or standoffs, and grounding it to ensure electrical safety.Step 1: Prepare the Enclosure
Before installing the steel plate, ensure the distribution box is placed in a dry, accessible location with enough space for ventilation and maintenance, typically around 1.5 meters above the ground for residential setups . Check that the enclosure has pre-drilled holes or mounting points for the plate .
Step 2: Select the Steel Plate
Use a galvanized steel plate for general applications, as it provides structural support, corrosion resistance, and electrical conductivity. For highly corrosive environments, stainless steel is preferred . Ensure the plate size fits the enclosure and allows space for components like DIN rails, terminal blocks, and circuit breakers.
Step 3: Position and Secure the Plate
Place the steel plate inside the enclosure, aligning it with the mounting points or standoffs. Secure it using screws, bolts, or star washers to ensure a tight, vibration-resistant fit . Verify that the plate is level and stable before proceeding.
Step 4: Ground the Plate
For safety, the steel plate must be bonded to the main enclosure ground. Remove any paint or non-conductive coating from the contact surfaces to ensure a bare metal-to-metal connection. Attach a grounding lug or bonding jumper from the plate to the enclosure's main grounding stud .
Step 5: Mount Components
Once the plate is secured and grounded, install components such as DIN rails, circuit breakers, and terminal blocks. This allows for organized wiring and ensures that the assembly is structurally sound and electrically safe .
Step 6: Final Checks
After mounting, route and secure all wires neatly, leaving space for heat dissipation. Perform insulation resistance tests and verify that all connections comply with safety standards . Label circuits for easier maintenance and troubleshooting. By following these steps, the steel plate will provide a stable, safe, and organized base for all internal components of the distribution box, improving both reliability and ease of maintenance.
