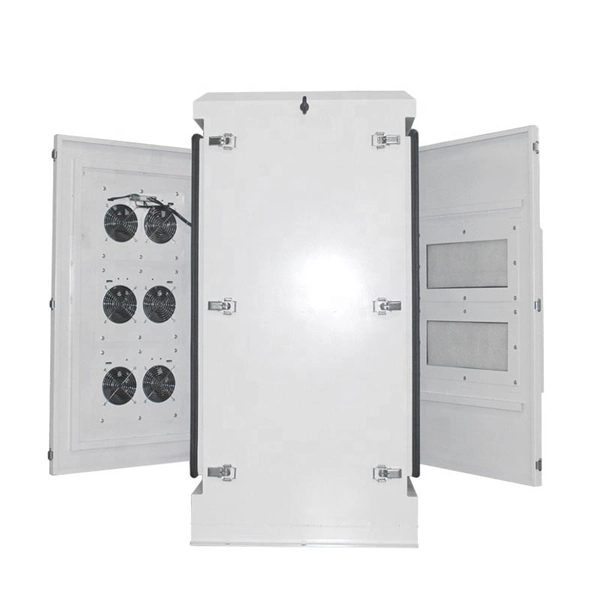

Fiber optic distribution frame access to optical cable

An Optical Distribution Frame (ODF) provides structured access to optical cables through organized termination, splicing, patching, and routing, ensuring safe and efficient fiber management.Overview of ODF Access

An ODF serves as a centralized hub for managing fiber optic cables, allowing technicians to terminate, splice, patch, and route fibers in a controlled environment. It protects delicate fibers from mechanical stress, dust, and contamination while providing easy access for maintenance and network expansion .

Key Components for Cable Access

1. Enclosure: The outer shell, often made of steel, aluminum, or flame-retardant plastic, provides protection and organizes internal components. Enclosures can be wall-mounted, rack-mounted, or modular depending on deployment needs .
2. Splice Trays: These trays house fiber splices, maintaining proper bend radius and slack storage. They allow technicians to access individual fibers for fusion or mechanical splicing without disturbing other connections .
3. Patch Panels: Modular panels with LC, SC, or MPO adapters enable cross-connection of fibers. Patch cords can be inserted or removed to reroute signals, providing front-accessibility for quick maintenance .
4. Cable Management Accessories: Rings, guides, and holders maintain neat fiber routing, prevent bending or crushing, and allow technicians to trace and access specific fibers efficiently .

Accessing Optical Cables Safely

• Plan Cable Entry and Routing: Ensure fibers enter the ODF without sharp bends and follow structured pathways to minimize stress .
• Labeling: Clearly label all fibers and ports to simplify identification and reduce errors during maintenance or expansion .
• Modular Access: Use slide-out trays or modular panels to reach specific fibers without disturbing adjacent connections .
• Regular Inspection and Cleaning: Maintain connectors and splices to prevent signal degradation and ensure reliable access .

Types of ODFs for Access

• Wall-Mount ODFs: Compact units for small-scale deployments, providing easy access in limited spaces .
• Rack-Mount ODFs: Standard 19-inch or 23-inch frames for high-density environments, offering slide-out trays and modular patch panels for convenient fiber access .
• Modular ODFs: Scalable systems that allow technicians to expand fiber counts while maintaining organized access .
• Outdoor ODFs: Weatherproof enclosures with front and rear access for splicing and patching in external deployments .

Best Practices

• Maintain proper bend radius to prevent signal loss.
• Use modular and labeled patch panels for scalable and organized access.
• Ensure slack storage in trays to allow future reconfiguration.
• Provide front and rear access where possible to simplify splicing and maintenance . By following these practices, technicians can efficiently access optical cables in an ODF while maintaining network reliability, scalability, and long-term fiber integrity.
