Method for Measuring Optical Power Attenuation with an Optical Power Meter

ODN and passive infrastructure knowledge brief Published 13 Apr 2025

Prepared for preliminary research by the GESTIONVAL ODN knowledge desk. Confirm network topology, split ratio, box or cabinet capacity, joint closure rating and loss budget against current standards and product documentation.

Optical power attenuation is measured by comparing the optical power at the source and at the receiving end using a calibrated power meter, expressed in dB.Step-by-Step Procedure
  1. Prepare the Equipment
    • Use a calibrated optical power meter and a compatible light source for your fiber type (850/1300 nm LED for multimode, 1310/1550 nm laser for single-mode) .
    • Ensure all connectors and adapters are clean using lint-free wipes or click-to-clean tools to prevent dust from affecting readings .
  2. Set the Wavelength
    • Match the power meter wavelength to the light source wavelength. Detector responsivity varies with wavelength, so this ensures accurate readings .
  3. Establish a Reference

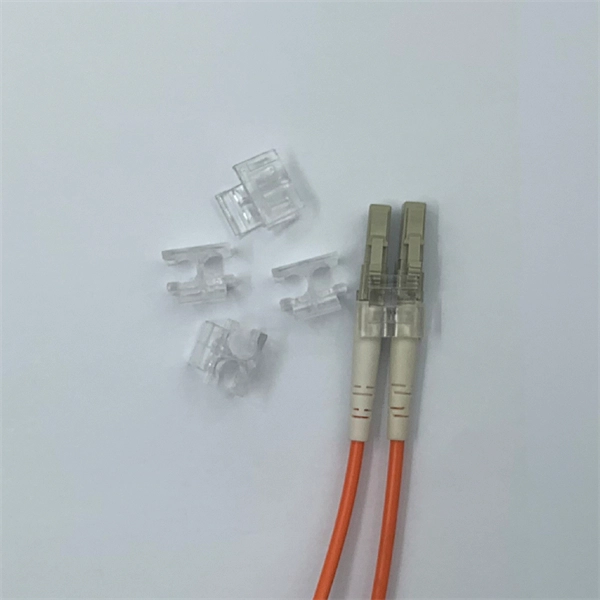

    • Connect the power meter directly to the light source using a reference patchcord. Record the reference power (P₀) in dBm. This represents the transmitted power .
  4. Measure Received Power
    • Connect the fiber under test to the light source and attach the power meter at the far end. Record the received power (P₁) in dBm .
  5. Calculate Attenuation
    • Optical power attenuation (loss) is calculated as: Attenuation (dB) = P₀ (dBm) − P₁ (dBm)
    • This value accounts for losses from the fiber, connectors, and splices .
Measurement Methods
  • Single-Ended Method: Measures loss at one connector and the fiber segment using only the launch cable. Useful for patch cords .
  • Double-Ended Method: Uses a launch cable and a receive cable to measure total link loss, including all connectors and splices. This is standard for installed fiber links .
Best Practices
  • Warm up the meter for a minute or two to stabilize readings .
  • Calibrate regularly to maintain accuracy .
  • Consistent measurement points: Always measure at the same locations (transmitter port, patch panel, or outlet) to ensure meaningful results .
  • Interpret results in context: Power readings alone do not indicate link quality; compare against expected link budget . By following these steps, you can accurately measure optical power attenuation and ensure reliable fiber optic network performance.
