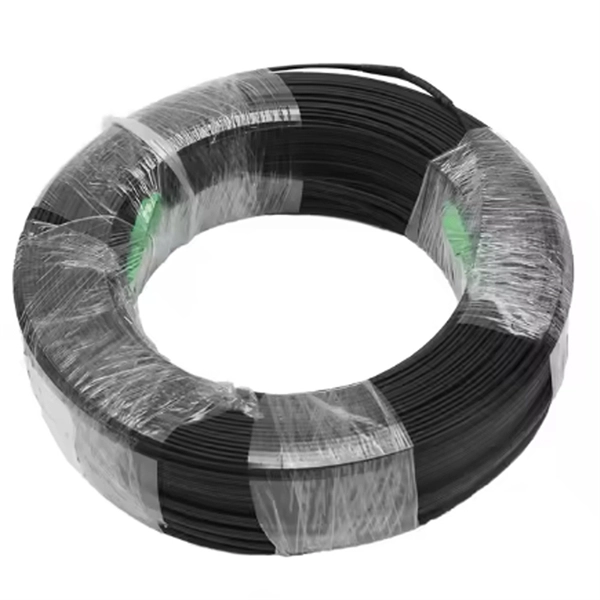

Linear fabrication of direct-buried optical cables

Direct-buried optical cables are armored for mechanical protection and corrosion resistance, and their linear fabrication and installation require careful handling, trenching, and adherence to standards to ensure long-term performance.Cable Construction and Standards

Direct-buried optical cables are designed with steel tape or wire armoring to resist mechanical damage and soil corrosion, making them suitable for direct burial without additional conduit protection . The ITU-T L.101 Recommendation specifies the characteristics, construction, and testing methods for such cables, including electrical continuity tests for metallic elements and performance criteria for outdoor, directly buried applications . Compliance with IEC 60794-3-11 ensures that cables meet requirements for duct, direct burial, and lashed aerial installations.

Linear Fabrication Considerations

During fabrication, cables are produced in continuous lengths with attention to tensile strength, minimum bend radius, and mechanical load limits. Typical minimum bend radii are expressed as multiples of the cable diameter, with static and dynamic conditions considered to prevent fiber breakage or signal loss . The maximum rated cable load (MRCL) must not be exceeded during handling or installation, with short-term loads during installation often around 600 pounds (2700 N) for standard fiber cables .

Installation Methods

Direct-buried optical cables can be installed using manual lifting and laying or mechanical traction:

• Manual Laying: Personnel must be trained to lift and place the cable uniformly along the trench, avoiding twisting or bending beyond the minimum radius. A unified command ensures consistent stress along the cable .
• Mechanical Traction: Pulleys are used to guide the cable and prevent dragging or excessive tension. The cable must not be pulled too tightly or bent sharply . Trenching and Plowing: Trenches are dug to the required depth, and plowing can be used for long linear runs. Care must be taken to avoid sharp objects, rocks, or debris that could damage the cable . The cable should be laid in a figure-eight configuration when unspooled to prevent kinking and twisting .

Post-Laying Procedures

After installation, the outer sheath should be inspected for damage, and any defects repaired immediately . Electrical insulation tests of the metal sheath and ground insulation tests are performed to ensure integrity . Adequate slack should be left at splice points and for future maintenance, and the cable should be properly marked and documented for inspection and repair purposes .

Additional Considerations

• Path Planning: The shortest path is not always optimal; land rights, terrain, and future maintenance access must be considered .
• Bend Radius: When the cable turns, the radius should exceed 20 times the cable diameter to prevent microbending losses .
• Grounding: Metal components must be reliably grounded, especially in high-voltage or mountainous areas .
• Documentation: Detailed construction drawings and reserved lengths are essential for reliable installation and future inspections . By following these fabrication and installation practices, direct-buried optical cables can achieve long-term reliability, minimal signal loss, and resistance to environmental and mechanical stresses.
