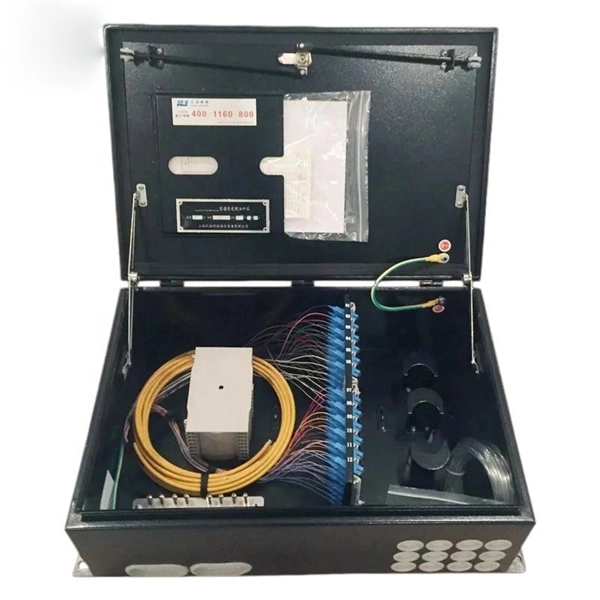

Fiber optic pigtail splitter connection

To connect a fiber optic splitter to a pigtail, you typically use fusion splicing or mechanical splicing to join the bare fiber ends, ensuring a low-loss, continuous optical path.Step 1: Gather Tools and Materials

Before starting, ensure you have the following:

• Fiber optic splitter and pigtails
• Fusion splicer or mechanical splice kit
• Fiber stripper and cleaver
• Isopropyl alcohol wipes and lint-free cloths
• Heat-shrink sleeves or splice protectors
• Optical power meter or OTDR for testing

Step 2: Prepare the Fibers

1. Strip the outer jacket of both the splitter output fiber and the pigtail to expose the bare glass fiber.
2. Clean the fibers with alcohol wipes to remove dust and debris.
3. Cleave the fibers precisely using a fiber cleaver to create a flat, smooth end for splicing .

Step 3: Splice the Fibers

• Fusion Splicing:
  1. Place the prepared fibers into the fusion splicer.
  2. The splicer aligns the fibers automatically and fuses them using an electric arc.
  3. Apply a heat-shrink sleeve over the splice for protection .
• Mechanical Splicing:
  1. Insert the fibers into a mechanical splice connector, which aligns them precisely.
  2. The connector holds the fibers in place, allowing light to pass through with minimal loss .

Step 4: Connect the Pigtail to Equipment

Once the pigtail is spliced to the splitter:

1. Plug the factory-terminated connector end of the pigtail into the desired port on an optical distribution frame (ODF), patch panel, or active equipment .
2. Ensure the connection is secure and properly labeled for network management.

Step 5: Test the Connection

Use an optical power meter or OTDR to verify the splice quality and signal integrity. Check for low insertion loss and minimal back reflection to ensure reliable performance .

Best Practices

• Always use pre-tested, high-quality pigtails to reduce errors.
• Handle fibers carefully to avoid contamination or breakage.
• Work in a clean environment to prevent dust from affecting the splice.
• Follow manufacturer guidelines for both the splitter and pigtail types . By following these steps, you can achieve a low-loss, reliable connection between a fiber optic splitter and a pigtail, suitable for FTTH, data center, or telecom applications.
