Proper configuration of a distribution box requires careful planning of layout, breaker selection, wiring, and compliance with safety codes to ensure reliable and safe power distribution.1. Selecting the Right Distribution Box

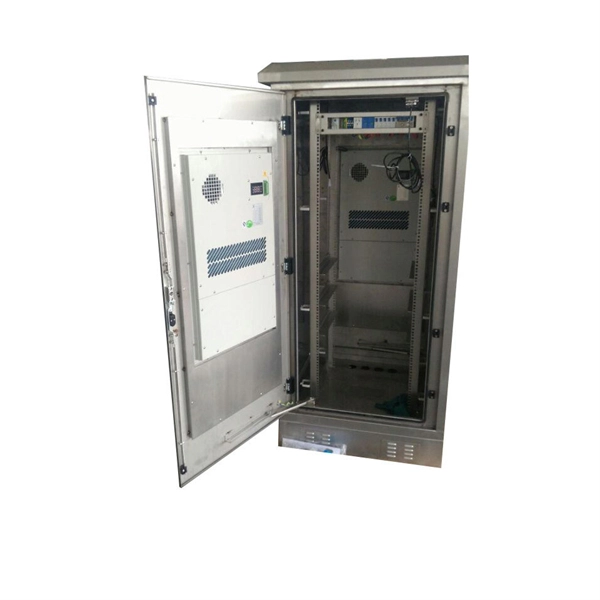

Choose a distribution box based on load capacity, number of circuits, and environment. For indoor floor-to-ceiling rooms, a plastic or steel enclosure with adequate IP/NEMA rating is recommended to protect against dust and moisture ( ). Ensure the box has enough space for future expansion and proper ventilation to prevent overheating.
2. Placement and Accessibility
Install the box in a dry, accessible location. NEC 2023 requires a minimum clearance of 30 inches wide, 36 inches deep, and 6.5 feet high in front of the panel ( ). The mounting height should not exceed 6 ft 7 in (≈2 meters) above the floor, ensuring all breakers are reachable without ladders. Avoid bathrooms, closets, or areas with obstructions.
3. Internal Layout and Components
Inside the box, organize components for efficient distribution and safety ( ):
- Main breaker to control overall power.
- Branch circuit breakers (MCBs, RCBOs, or RCDs) for individual circuits.
- Neutral and earth bars for proper grounding.
- Surge protection devices (SPDs) if sensitive electronics are present.
- Arrange breakers left to right, with reserved positions for future circuits.
- Maintain clear wiring paths: incoming wires on the left, outgoing wires on the right.
4. Wiring and Connections
- Use appropriate wire gauge based on load: typically 2.5 mm² for lighting and sockets, 4 mm² for air conditioning or high-power circuits ( ).
- Follow color coding: blue for neutral, red/yellow/green for phases.
- Secure wires with plastic ties and maintain uniform spacing for neatness and safety.
- Clearly label all circuits and voltage levels to simplify maintenance.
5. Safety and Compliance
- Ensure grounding and insulation are properly installed.
- Perform visual inspections and multimeter tests before powering on ( ).
- Comply with NEC, IEC, or local codes for panelboards, including dedicated working space and proper lighting ( ).
- Avoid placing equipment in front of the panel that extends more than 6 inches beyond the box.
6. Maintenance and Documentation
- Record installation details for future inspections.
- Schedule regular maintenance to check for loose connections, overheating, or damaged components.
- Consider modular designs to facilitate upgrades or circuit additions. By following these steps, you can configure a distribution box that is safe, code-compliant, and capable of handling the electrical demands of a floor-to-ceiling room while allowing for future expansion and easy maintenance.
