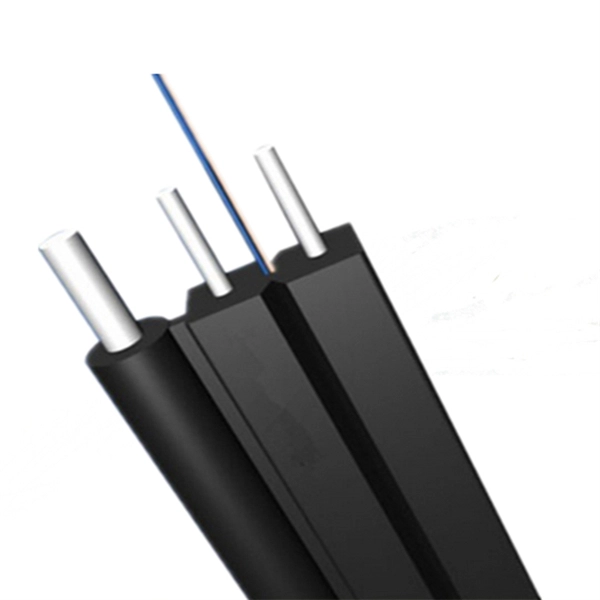

10-core optical fiber cable color chart

A ten-core optical fiber cable follows the TIA-598-C standard, using the first ten colors of the 12-color sequence: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, and Violet.Standard Color Sequence for 10 Fibers

For a ten-core cable, each fiber is assigned a unique color from the TIA-598-C standard sequence:

1. Blue
2. Orange
3. Green
4. Brown
5. Slate (Gray)
6. White
7. Red
8. Black
9. Yellow
10. Violet This sequence ensures that each fiber can be easily identified during installation, splicing, and maintenance, reducing the risk of miswiring or cross-connections .

Notes on Multi-Fiber Cables

• For cables with more than 12 fibers, the 12-color sequence repeats with additional markings (e.g., stripes or rings) to maintain unique identification .
• In smaller cables like a ten-core, the first ten colors are used directly without repetition or additional markings .
• Some manufacturers may provide custom color schemes or printed legends on the cable jacket for easier identification in specific applications .

Practical Tips

• Always verify the fiber color sequence with the manufacturer's datasheet, as some specialty cables may slightly vary.
• Use the color chart consistently across splice trays, connectors, and patch panels to avoid confusion.
• For high-density or ribbon cables, additional coding such as tube colors or stripes may be applied, but the individual fiber colors within a tube still follow the standard sequence . By following this color chart, technicians can ensure accurate fiber identification and maintain network reliability in ten-core optical fiber installations.
