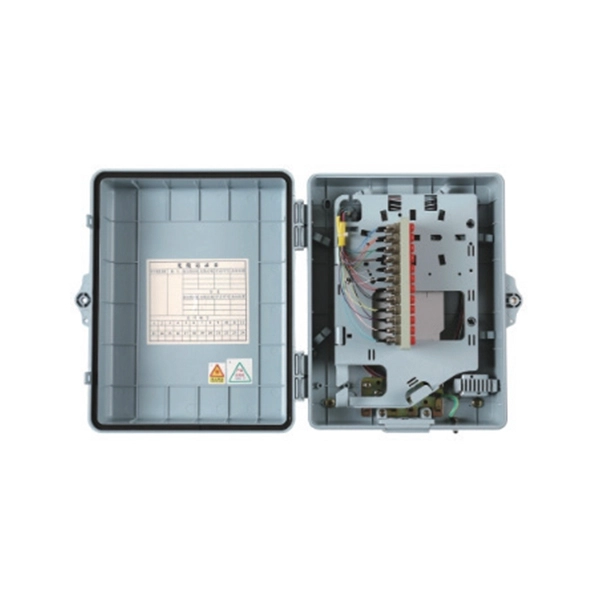

Directly connect the wiring to the distribution box

Directly connecting wiring to a distribution box requires careful sequencing, proper component connections, and strict adherence to safety precautions to ensure a safe and functional electrical system.Safety First

Before starting, turn off the main power supply to prevent electrical shock. Ensure the distribution box is securely mounted at an accessible height and the installation area is free of obstructions . Always use insulated tools and wear protective equipment.

Connecting the Main Supply

1. Identify the input wires: Typically, the live (phase) wire is brown or red, and the neutral wire is blue or black.
2. Connect to the Main MCB: Attach the incoming phase and neutral wires to the input terminals of the main double-pole MCB. This MCB acts as the main switch and protects the entire system .
3. Connect to the RCCB: If an RCCB is used, connect the output of the main MCB to the input of the RCCB. The RCCB provides protection against earth leakage .

Wiring the Circuit Breakers

• Single-pole MCBs: Connect the phase wire from the RCCB output to the input of each single-pole MCB. Connect the neutral wire to the neutral link and the earth wire to the earth link .
• Double-pole MCBs: For special loads, connect both phase and neutral wires from the RCCB output to the input of the double-pole MCB. Connect the load's phase and neutral to the output terminals, and the earth wire to the earth link .

Outgoing Circuits

Wire the outgoing circuits according to the intended electrical load. Ensure each wire is correctly marked for identification and safety. Use plastic ties to bind wires neatly, maintaining uniform spacing and avoiding kinks .

Neutral and Earth Connections

• Connect all neutral wires from the loads to the neutral link.
• Connect all earth wires, including the metallic body of the distribution box, to the earth link. The earth wire may come from the supply cable or an earth pit .

Verification

After completing the wiring, inspect all connections for tightness and correct placement. Use a multimeter to check for continuity, proper voltage, and absence of short circuits. Ensure the system is not overloaded and all exposed wires are insulated .

Key Tips

• Choose the right distribution box based on the number of circuits and load requirements.
• Avoid overloading circuits and ensure all protective devices are rated appropriately.
• Label all wires clearly to simplify future maintenance . By following these steps, you can safely and efficiently connect wiring directly to a distribution box, ensuring reliable operation and protection for your electrical system.
