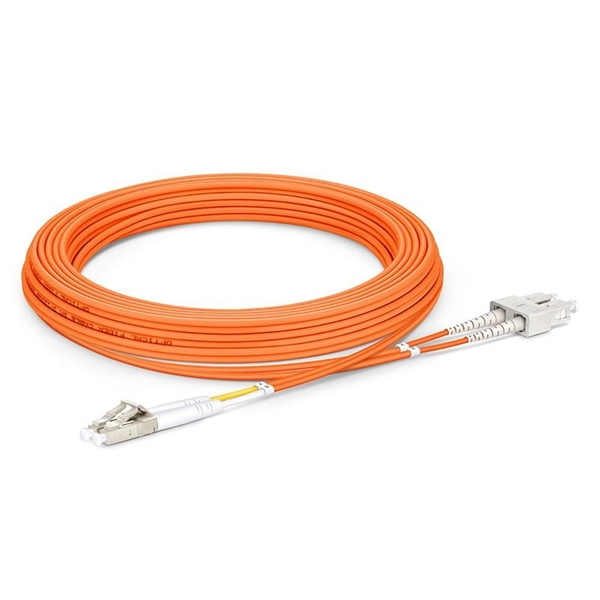

The speed of the 10 Gigabit optical module is insufficient

ODN and passive infrastructure knowledge brief Published 26 Dec 2023

Prepared for preliminary research by the GESTIONVAL ODN knowledge desk. Confirm network topology, split ratio, box or cabinet capacity, joint closure rating and loss budget against current standards and product documentation.

A 10 Gigabit optical module may fail to reach full 10G speed due to hardware limitations, module-fiber mismatch, switch port restrictions, or link quality issues.Common Causes of Insufficient 10G Speed
  1. Switch or Port Limitations: Some network switches or SFP slots only support 1G speeds even if the module is 10G-capable. Ensure the switch port is rated for 10G and supports SFP+ modules .
  2. Module Compatibility: Different generations of SFP+ modules may have similar physical dimensions but differ in electrical standards. Using an incompatible module can prevent full 10G operation .
  3. Fiber Type and Distance: 10GBASE-SR modules are designed for short-reach multimode fiber (OM3/OM4) up to 300–400 meters, while 10GBASE-LR modules are for single-mode fiber over longer distances. Using the wrong fiber type or exceeding the maximum distance can reduce speed .
  4. Link Quality and Power Budget: High insertion loss, dirty connectors, or poor-quality fiber can degrade signal strength. The link power budget must account for cable attenuation, splice losses, and connector losses to maintain 10G performance .
  5. Environmental Factors: Optical modules are sensitive to temperature, humidity, and electrostatic discharge. Operating outside the recommended temperature range or exposing the module to dust or physical damage can reduce performance .
Troubleshooting Steps
  1. Verify Hardware and Port Specifications: Confirm that both the switch and the SFP+ slot support 10G speeds and are compatible with the module type .
  2. Check Fiber and Connectors: Ensure the fiber is clean, properly connected, and of the correct type (OM3/OM4 for SR modules). Reinsert and clean connectors if necessary .
  3. Test Link with Equipment: Use optical power meters or network analyzers to measure signal strength and verify that the link meets the required power budget .
  4. Replace or Upgrade Modules: If the module is damaged or incompatible, replace it with a certified 10G SFP+ module suitable for the fiber type and distance .
  5. Check Configuration: Ensure the switch port is configured for 10G operation and that auto-negotiation or manual speed settings are correctly applied .
Recommendations
  • For short-reach connections (up to 400 meters), use 10GBASE-SR SFP+ modules with OM3/OM4 fiber .
  • For longer distances, consider 10GBASE-LR or 10GBASE-ER modules with single-mode fiber .
  • Maintain proper environmental conditions and handle modules carefully to avoid physical or electrostatic damage . By systematically checking hardware compatibility, fiber type, link quality, and module condition, most 10G speed issues can be resolved, ensuring the optical module operates at its full 10 Gbps capacity.
