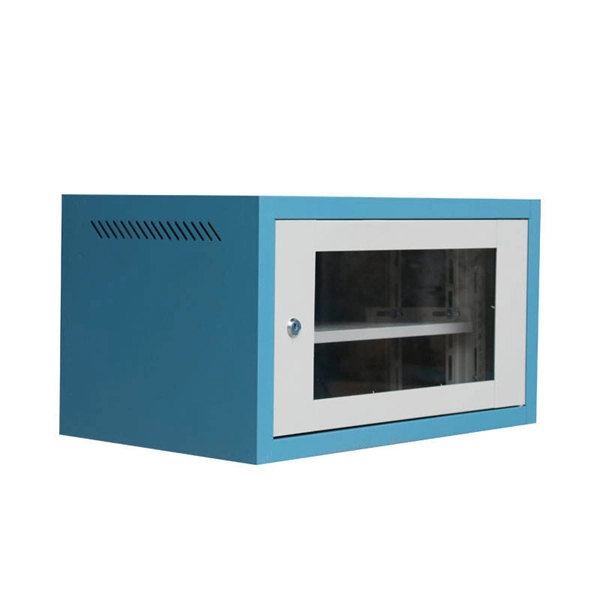

Construction of Outdoor Centralized Distribution Boxes

Outdoor centralized distribution boxes are robust, weatherproof enclosures designed to house electrical distribution components safely while ensuring easy maintenance and compliance with protection standards.Enclosure Design and Materials

Outdoor distribution boxes are typically made from cold-rolled steel, aluminum, stainless steel, or fiberglass-reinforced polyester, providing durability against environmental stress such as rain, UV radiation, and temperature extremes . Steel enclosures are preferred for heavy-duty applications due to their strength, while fiberglass or plastic may be used for lighter installations . The enclosure should be rigid, free-standing, and floor-mounted, with structural frames and panels bolted or welded together. All edges are bent and rounded, and doors or removable panels are sealed with neoprene gaskets to prevent water ingress .

Protection Standards

The enclosure must meet IP or NEMA ratings suitable for outdoor use, typically IP43 to IP67 or NEMA 3R/4/4X, ensuring protection against dust, water, and other environmental hazards . Compliance with standards such as IEC 60529, IEC 61439, and UL 489 ensures both environmental and electrical safety .

Internal Components

Inside the box, essential components include circuit breakers, busbars, terminal blocks, DIN rails, and wiring. Circuit breakers provide overcurrent protection, with thermal-magnetic or electronic trip mechanisms for short-circuit and overload protection . Proper spacing and layout are critical to maintain working clearances and facilitate maintenance. Surge protection devices may also be included to protect against voltage spikes .

Layout and Load Distribution

The layout should optimize cable entry points, minimize cable length, and separate different voltage systems to reduce interference and energy losses . Load calculations must consider continuous and intermittent loads, ensuring that each distribution box is rated appropriately to prevent overloads . Ventilation louvers with screens and filters are recommended to maintain airflow while preventing debris ingress .

Installation Considerations

• Height and Accessibility: Boxes should be installed at a minimum height of 300 mm above finished floor level for easy maintenance .
• Canopy Design: A sloping top canopy prevents water accumulation.
• Environmental Exposure: Ensure the box is rated for local climatic conditions, including temperature extremes and humidity .
• Safety Compliance: Follow local electrical codes and standards for grounding, phase spacing, and breaker sizing .

Maintenance and Safety

Regular inspection of tightness of terminals, breaker operation, and gasket integrity is essential. Proper labeling and danger notices should be affixed to the enclosure to ensure safety . The design should allow front-end access for cable termination and fuse operation without removing the entire enclosure . By adhering to these construction and installation principles, outdoor centralized distribution boxes can provide reliable, safe, and efficient power distribution in residential, commercial, or industrial environments.
