How to configure a switch with an optical port

ODN and passive infrastructure knowledge brief Published 06 Jul 2022

Prepared for preliminary research by the GESTIONVAL ODN knowledge desk. Confirm network topology, split ratio, box or cabinet capacity, joint closure rating and loss budget against current standards and product documentation.

To configure an optical port on a switch, you need to connect the appropriate SFP transceiver, set the port parameters such as duplex and speed, and verify the link and transceiver status.

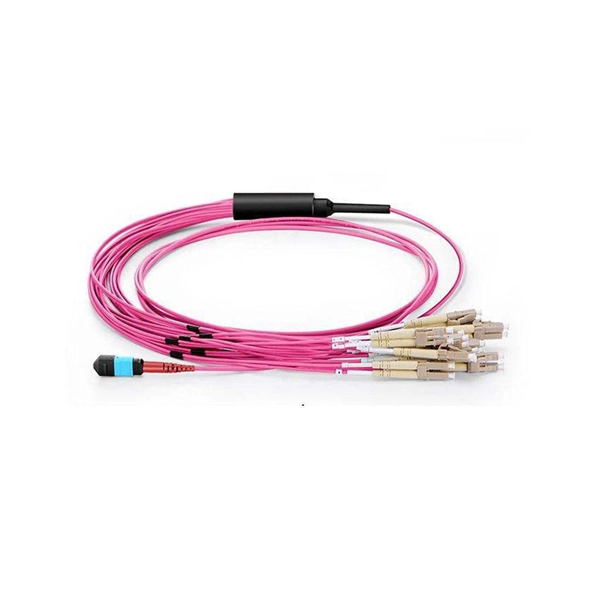

Step 1: Prepare the Optical Port and Cable

Before configuration, ensure you have the correct fiber-optic cable and SFP transceiver compatible with your switch model. Identify the optical ports, often labeled as SFP, Mini-GBIC, or Optical, and remove any protective caps. Use an anti-static wrist strap and clean the connectors with a fiber-optic cleaning kit to prevent contamination, which can increase signal loss and reduce performance .

Step 2: Insert the Transceiver and Connect the Cable

Insert the SFP transceiver into the optical port. Keep the transceiver disconnected from the fiber cable during insertion to avoid damage. Once the transceiver is securely seated, connect the fiber-optic cable to the transceiver, ensuring proper alignment of the connector type (LC, SC, or ST) and matching the transmit (TX) and receive (RX) ends .

Step 3: Configure Port Parameters

Access the switch via console, SSH, or telnet. Enter configuration mode and select the optical interface. Common configuration steps include:

  • Specify the media type if the port is a combination port (copper/fiber)
  • Set duplex mode (full duplex is standard for fiber) using commands like duplex full
  • Configure speed if applicable (some fiber interfaces have fixed speeds)
  • Enable the port with no shutdown to activate it .

Example for Cisco Catalyst switches:

enableconfigure terminalinterface GigabitEthernet1/1duplex fullno shutdownexitcopy running-config startup-config Step 4: Verify Port and Transceiver Status

After configuration, check the port and transceiver status to ensure proper operation. Commands vary by vendor:

  • Cisco/Fortinet: show interface status or get switch physical-port to view link status, speed, and duplex mode
  • Transceiver details: get switch modules detail or show interface transceiver to check type, serial number, and supported distance
  • DDM monitoring: Verify TX/RX optical power, temperature, and bias current to detect any issues .
Step 5: Test Connectivity

Once the port is configured and verified, test network connectivity by connecting to the remote device or switch. Ensure the link is up and data transmission is stable. Monitor for errors or high attenuation, which may indicate dirty connectors or incompatible transceivers .

By following these steps, you can safely and effectively configure an optical port on your switch, ensuring reliable fiber-optic network connectivity.
