ODF Fiber to the Home

An Optical Distribution Frame (ODF) is the central hub in FTTH networks, organizing, terminating, and managing fiber optic connections from the service provider to individual homes.Role of ODF in FTTH

In FTTH networks, the ODF serves as a centralized platform where fibers from the Optical Line Terminal (OLT) are terminated, spliced, and routed to distribution points or directly to subscribers . It ensures that fiber connections are organized, protected, and easily accessible for maintenance or network upgrades . By providing structured pathways, ODFs prevent damage to delicate fibers, simplify troubleshooting, and allow scalable network expansion.

Key Functions

• Termination: Incoming fibers from trunk cables are terminated into connectors (LC, SC, ST) within the ODF .
• Splicing: Fibers are joined via fusion or mechanical splicing, with splices stored in protective trays to maintain signal integrity .

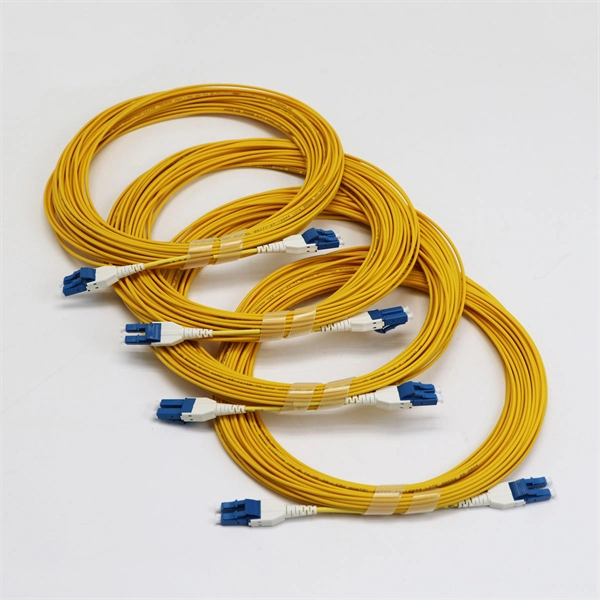

• Patching: Patch cords connect terminated fibers to cross-connect points, enabling flexible routing to distribution terminals or Optical Network Units (ONUs/ONTs), .
• Distribution: Fibers are routed from the ODF to Fiber Distribution Terminals (FDTs) or directly to homes, supporting point-to-multipoint architecture .

Types of ODFs

ODFs come in various configurations depending on deployment needs:

• Wall-Mount ODF: Compact units suitable for small-scale residential or office networks, easy to install and maintain .
• Rack-Mount ODF: Standard 19-inch or 23-inch frames for high-density deployments in central offices or data centers, offering modularity and scalability .
• Modular ODF: Scalable systems designed for growing fiber counts, allowing future expansion without major reconfiguration .
• Outdoor ODF: Weatherproof enclosures for external deployments, often integrated with Fiber Distribution Terminals for FTTH cabinets .

Integration with FTTH Architecture

In a typical FTTH setup, the ODF connects the OLT at the central office to passive optical splitters, which divide the signal to multiple subscribers . From the splitters, fibers are routed through FDTs or Fiber Access Terminals (FATs) to individual homes. The ODF ensures that all these connections are organized, labeled, and protected, facilitating efficient maintenance and minimizing signal loss .

Best Practices

• Maintain proper fiber bend radius to prevent signal degradation .
• Use modular patch panels for scalable expansion.
• Clearly label fibers and ports for quick identification.
• Regularly inspect and clean connectors to maintain network performance . By centralizing fiber management, the ODF is essential for reliable, scalable, and maintainable FTTH networks, supporting high-speed internet delivery directly to residential areas.
