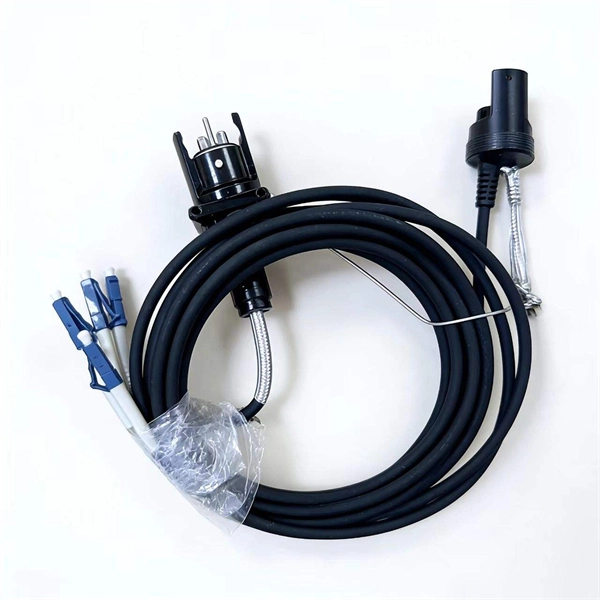

The pigtail connector can be disassembled and reassembled

Disassembling a pigtail connector involves safely disconnecting power, loosening terminals, and depinning wires from the connector housing.Safety and Preparation

1. Turn off power: Ensure the circuit or vehicle battery is disconnected to prevent electrical shock or short circuits (disconnect the negative battery terminal for automotive applications) .
2. Wear protective gear: Use insulated gloves and safety goggles to protect against accidental sparks or wire damage .
3. Gather tools: Common tools include a small screwdriver or mini screwdriver, wire strippers, a ratcheting crimping tool, and optionally a heat gun for sealing .

Disassembly Steps

1. Inspect the connector: Check for visible damage, corrosion, or burnt marks to determine if replacement is necessary .
2. Remove the connector cap or housing: Many pigtail connectors have a front cap or locking mechanism. Carefully remove the cap to access the terminals .
3. Release the terminal catch: Most connectors have a small latch or catch holding the terminals in place. Use a mini screwdriver or depinning tool to gently lift or depress the catch .
4. Loosen terminal screws (if applicable): For connectors with screw terminals, turn the screws counterclockwise to free the wires .
5. Depin the wires: Gently pull the wires out of the connector once the catch is released. Avoid tugging forcefully to prevent wire or terminal damage .
6. Label or note wire positions: If you plan to reassemble or replace the connector, mark each wire to ensure correct reconnection .

Optional Steps for Repair or Replacement

• Strip wire insulation: Remove 3/8 to 1/2 inch of insulation from the wire ends to prepare for crimping or soldering a new connector .
• Crimp or solder new terminals: Use adhesive-lined heat shrink butt connectors or soldering for a secure, moisture-resistant connection .
• Reassemble connector: Insert the terminals into the new connector housing, ensuring each wire clicks into place and the locking mechanism is engaged . Following these steps ensures a safe and effective disassembly of a pigtail connector, whether for inspection, repair, or replacement, while minimizing the risk of electrical hazards or wire damage .
