How to use the splitter in a fiber optic box

Adding a fiber optic splitter to a fiber optic box involves careful preparation, proper placement, secure connections, and testing to ensure reliable signal distribution.Step 1: Select the Appropriate Splitter and Box

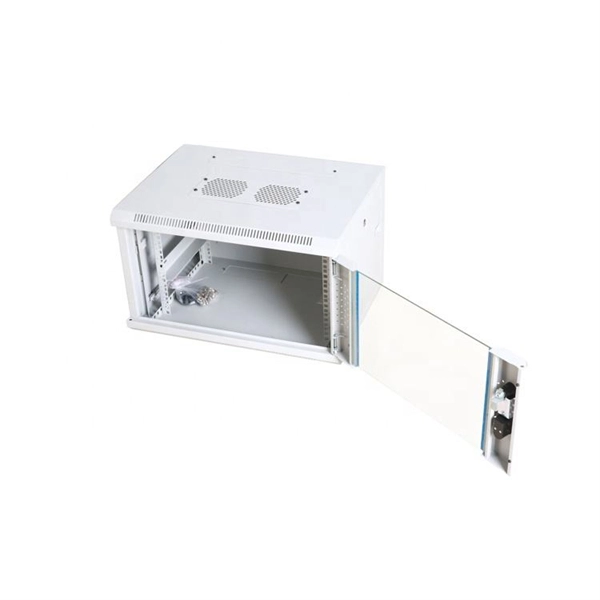

Choose a fiber optic splitter that matches your network requirements, considering the split ratio, number of output ports, and wavelength range. Ensure the fiber optic box (also called a splitter enclosure or optical distribution box) has enough space, protective slots, and strain relief for the splitter and fiber cables .

Step 2: Prepare Tools and Materials

You will need:

• Fiber optic cables and connectors
• Fiber optic stripper and cutter
• Cleaning kit for connectors
• Fusion splicer or mechanical splice kit
• Splice protectors
• Labels for cable identification

Step 3: Prepare the Fiber Cables

1. Measure and cut the fiber cables to the required length.
2. Strip the protective jacket carefully to expose the inner fibers.
3. Clean the fiber ends using a fiber optic cleaning tool to remove dust and debris, which is critical for minimizing signal loss .

Step 4: Install the Splitter

• For bare splitters (without connectors), place them in the splice tray inside the fiber box and perform fusion or mechanical splicing to connect the input and output fibers .
• For PLC splitters with connectors, insert the splitter into the dedicated slot or protective clamp inside the box. Use fiber adapters to dock and secure the connectors, and coil any excess fiber neatly to maintain proper bend radius .

Step 5: Connect and Secure Fibers

• Connect the input fiber to the splitter's input port and the distribution fibers to the output ports.
• Ensure there is no tension on the fibers and that all connections are secure.
• Use splice protectors or protective tubing to safeguard the splices .

Step 6: Test and Verify

• Power up the network equipment.
• Use an optical power meter or OTDR to test connectivity and signal quality.
• Verify that attenuation is within acceptable limits and there are no reflections or discontinuities .

Step 7: Label and Document

• Clearly label all input and output fibers for future maintenance.
• Document the installation, including splitter type, cable lengths, and any specific configurations . By following these steps, you ensure that the fiber optic splitter is properly integrated into the box, providing reliable signal distribution for your network deployment .
