Requirements for cable tray usage in computer room

Cable tray installations in computer rooms must comply with NEC Article 392, IEC 61537, and industry best practices, covering cable types, grounding, fill capacity, separation, support, and fire safety.Cable Types and Tray Rating

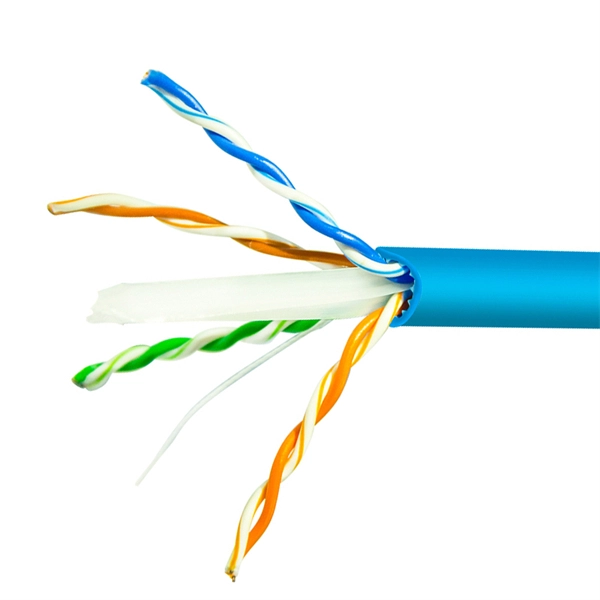

Only tray-rated cables such as Type TC (Tray Cable) or Metal-Clad (MC) are permitted in cable trays to ensure safety and durability under heat, moisture, and mechanical stress conditions . Cables not rated for open-air tray environments should not be installed. The tray system itself must be listed for its location and intended purpose, and capable of supporting the weight of all horizontal and backbone cabling .

Grounding and Bonding

Metallic cable trays must be electrically continuous and properly bonded at all splice points, connected to the building's grounding system . Bonding jumpers should be used where mechanical connections do not provide reliable continuity. Proper grounding prevents shock hazards, equipment failure, and ensures compliance with inspections. The tray system should allow for continuous grounding throughout its length .

Tray Fill Capacity

NEC guidelines specify maximum fill limits to prevent overheating and maintain airflow. For power cables, fill should not exceed 40% of the tray's cross-sectional area, and for control or data cables, 50% is recommended . Best practice is to maintain 50% capacity or less to allow for future expansion and proper cooling .

Separation of Cables

To reduce electromagnetic interference (EMI) and ensure reliable operation, high-power and low-power/data cables must be separated. Physical dividers or separate trays are recommended, and long parallel runs should be avoided . Proper separation is critical in computer rooms to prevent data corruption and system downtime.

Support and Spacing

Cable trays should be supported according to manufacturer specifications and standards. Typical support spacing ranges from 1.5 m to 3 m (5–10 ft) depending on tray type, load, and environmental conditions . Horizontal and vertical transitions, elbows, tees, and reducers must be installed as required, with rung spacing typically 6–8 inches (152–203 mm) . Adequate vertical clearance above trays (at least 12 inches) is recommended for maintenance access .

Firestopping and Penetrations

When trays penetrate fire-rated walls, floors, or plenum spaces, approved firestop systems must be used to maintain the building's fire-resistance rating . This prevents the spread of fire, smoke, and heat, ensuring compliance with safety codes.

Material Selection and Environmental Considerations

Tray materials—aluminum, steel, or FRP—should be selected based on environmental conditions, load requirements, and corrosion resistance . Outdoor or humid environments may require galvanized or coated trays to prevent corrosion.

Coordination and Installation Best Practices

• Coordinate with other trades to avoid conflicts with HVAC, plumbing, or structural elements .
• Ensure proper earthing continuity and avoid intermittent voltage buildup on tray surfaces .
• Maintain a quality control checklist during installation to verify tray alignment, fill, grounding, and separation .
• Allow for 10% growth in tray sizing to accommodate future cabling needs . By following these standards and best practices, cable tray installations in computer rooms will be safe, code-compliant, and reliable, supporting both current and future network and power infrastructure needs.
